Name: Vandal Proof Kiosk ATM Checking Devices Metal Numeric Keypad Outdoor 16 Function Keys
Brand: CNKHTECH
Price: 1 USD

Brand Name : CNKHTECH

Model Number : KH-E100R232

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T, Paypal

Supply Ability : 5000pcs/month

Delivery Time : 1-2 weeks

Packaging Details : Each keypad to a suitable inner box,30boxes/ctn

Keys OF keypad : 16

Key Material : Stainless Steel

Key Panel Material : Stainless Steel

Dimensions (Front Panel) : 100 X 100(L X W)

Contact Now

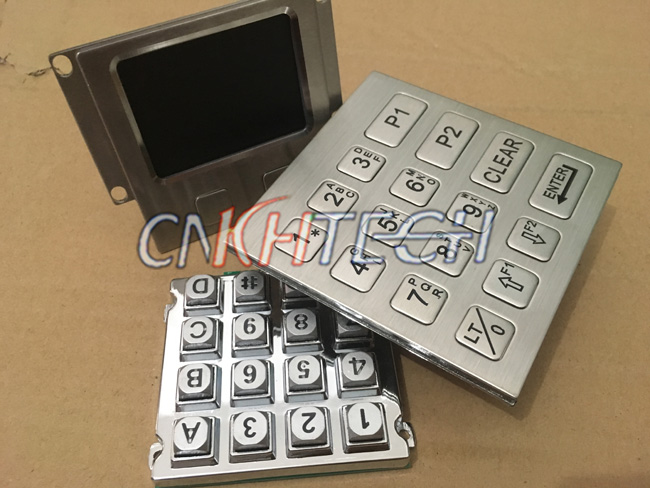

16 Custom Definition Function keys, vandal proof / longer life access control for Kiosk / ATM Checking devices outdoor or indoor

KH-E100-16

SIZE: 100 X 100mm(L X W)

Product Features:

> 16 keys custom design layout, using in access control system

> Strong vandal proof performance, Waterproof ,dust proof,,shake-proof

> Laser engraved characters for excellent durable.

> Solution: Top metal panel with threaded bolt solution, and other solution way is fine for us

> With custom definition connector is available: Pins, PS/2 or USB connector

> Mult-languages are optional

Product Applications:

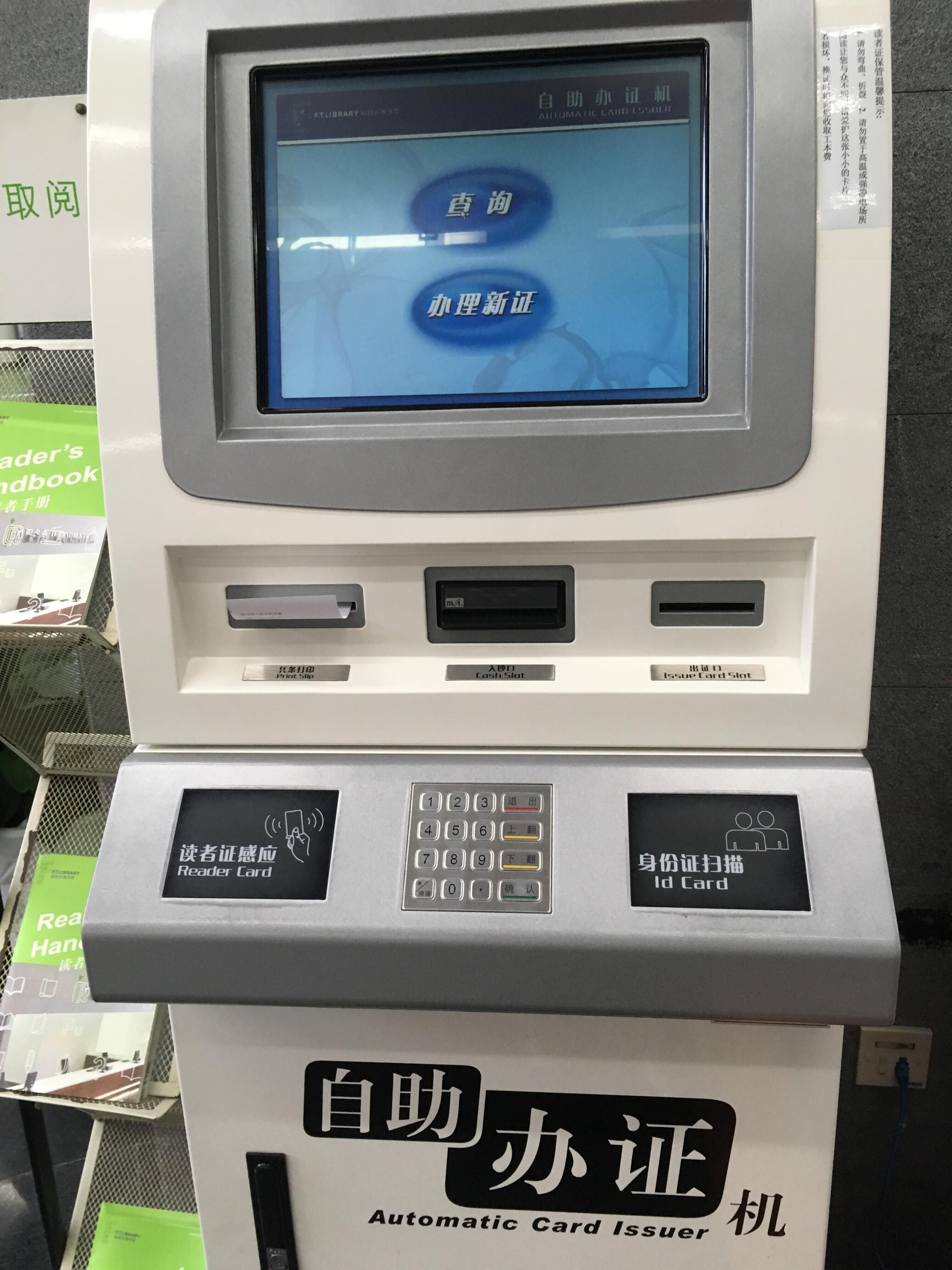

• This Numeric Keypad specially designed for public access entry system, such as Self-service kiosk, gas kiosk, ATM checkng devices and so on.

TECHNICAL SPECIFICATION

MECHANICAL DATA	Material:	Stainless Steel material for keys and panel
	Keypad Layout:	4 x 4 design
	Stroke travel:	0.45mm
	Switch life:	more than 1 million of per key
	MTBF:	>5,0000H
	MTTR:	<30min
	OS:	All windows, Linux, Unix, Mac OSX
ELECTRICAL DATA	Supply Voltage:	5.0V DC±5%
	Current Rating:	appr. 30mA
	EMC Standard:	It is compliance with the council EMC directive 2004/108/EC
	EN55022:	2006+A2:2010
	EN55024:	1998+A1:2001+A2:2003
	Lifespan:	> 5 years
ENVIRONMENTAL ADAPTABILITY	Operating temperature:	-20°C to +60°C
	Storage temperature:	-30°C to +70°C
	Operating RH:	20-95%
	Atmospheric pressure:	60-106Kpa.
