70 Keys Industrial Computer Keyboard SUS304 Brushed With Touchpad

SZ Kehang Technology Development Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

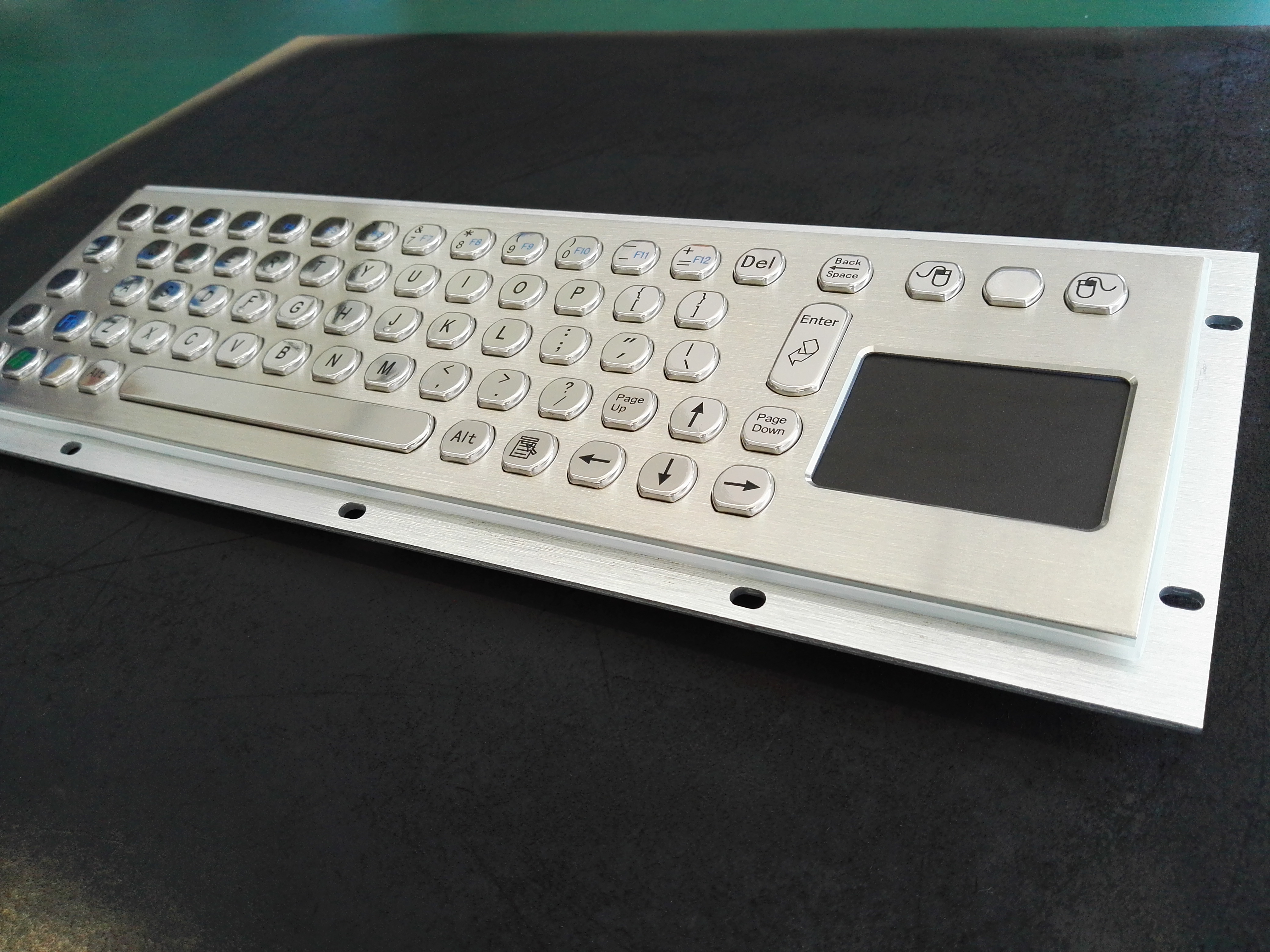

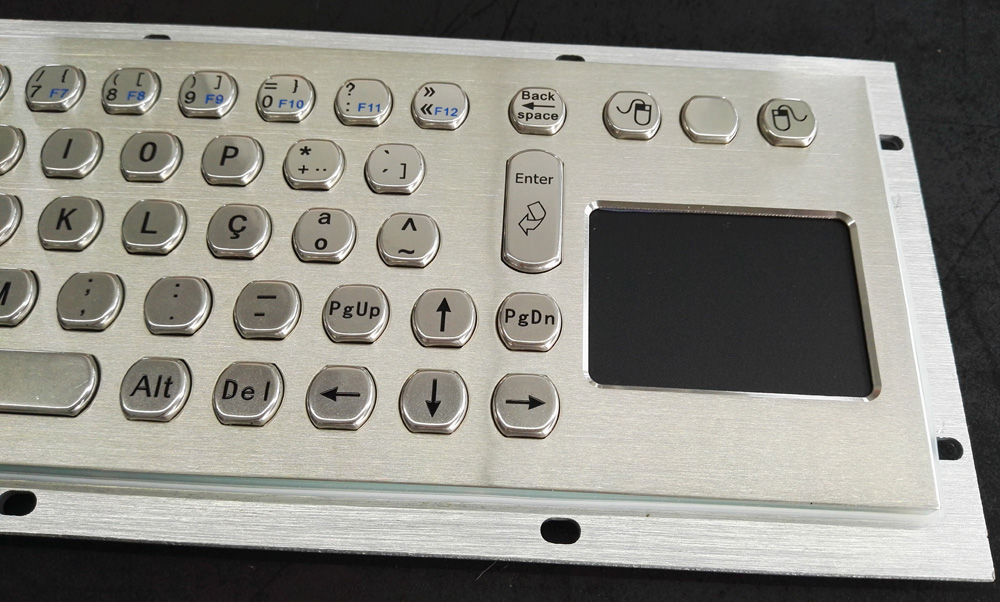

70 Keys Industrial Computer Keyboard SUS304 Brushed With Touchpad

Brand Name : CNKHTECH

Model Number : KH-K68-370TP

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 2000pcs/month

Delivery Time : 1-2 weeks

Packaging Details : 1pcs/EPE/inner box, 10boxes/ctn

Material : Stainless Steel

L X W (MM) : 370 x110mm(Front Panel)

No. Of Keys : (67+ 3) keys

Mouse detail : Touchpad Mouse

Layout : Internet friendly key layout

Interface : USB, PS/2, Others

Contact Now



Rugged 70 Keys Industrial Kiosk Keyboard with Touchpad Keyboard


PRODUCT FEATURES -


>  67 PC-keyboard layout with touchpad, front panel and additonal 3 mouse buttons

>
Protruding full travel keys,key travel:2.0mm,this provides a pretty tactile feel for users

>  Be strictly according to IP65 regulation for water-proof,dust-proof,vandal-proof performance

>
PS/2 or USB interface, plug and play,no extra software is needed

>  Friendly layout and any language is available and it’s free of additional charge



Material:



> Front panel & Keys: Brushed 304 stainless steel

> Back panel: Aluminum alloy

> Key cap: Protruding full travel key(2.0mm) with etched graphics

> Trackball: Stainless steel(Dia: 25mm)




APPLICATION -

The Vandal resistant Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATM/CDM), Internet public phones etc.


TECHNICAL DATA -

> Mechnical Data







Dimension:

(W x H): 370 x122 mm (Front panel)



Key & Front panel

SUS304 Brushed stainless steel material



Touchpad thickness

1.3 mm PCB thickness inclusive of mylar layer



Switch Life

>1 million of per key



Touchpad lifespan

> 10 Mio times



Mounting Rack

Rear aluminum panel w/hole mounting solution



Back Metal Cover

Rear side integrated electronics protected by a metal cover
Operation System ALL WINDOWS/Vista/Linux,Unix,MacOSX,iOS, Android



> Electrical Data



Supply Voltage


    5.0V DC±5%



Current Rating


    Appr. 30mA



EMC Standard


    Council EMC directive 2004/108/EC



EN55022


    2006+A2:2010



EN55024


    1998+A1:2001+A2:2003



Lifespan


    > 5 years



> Environmental Adaptability



Operating temperature


    -20°C to +60°C



Storage temperature


    -30°C to +70°C



Operating RH


    20-95%



Atmospheric pressure


    60-106Kpa.


> Reliability



CompliantStandard


    RoHS , CE and FCC



Protection Level


    IP65(front panel)



Vandal resistant


    IK10



Key Lifespan


    >1 million actuation



MTBF


    >50000H


MTTR


    <30min




 70 Keys Industrial Computer Keyboard SUS304 Brushed With Touchpad70 Keys Industrial Computer Keyboard SUS304 Brushed With Touchpad
