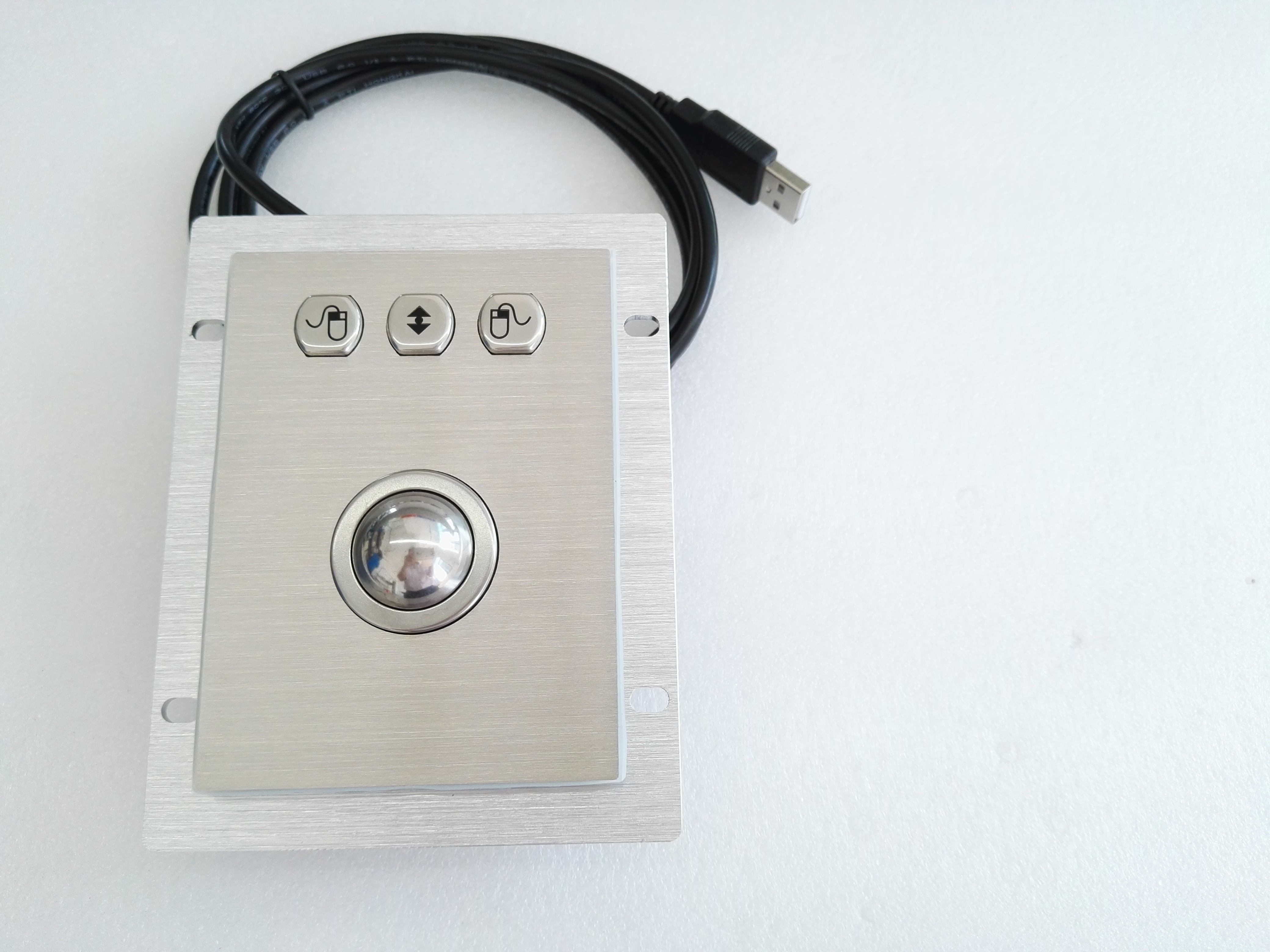

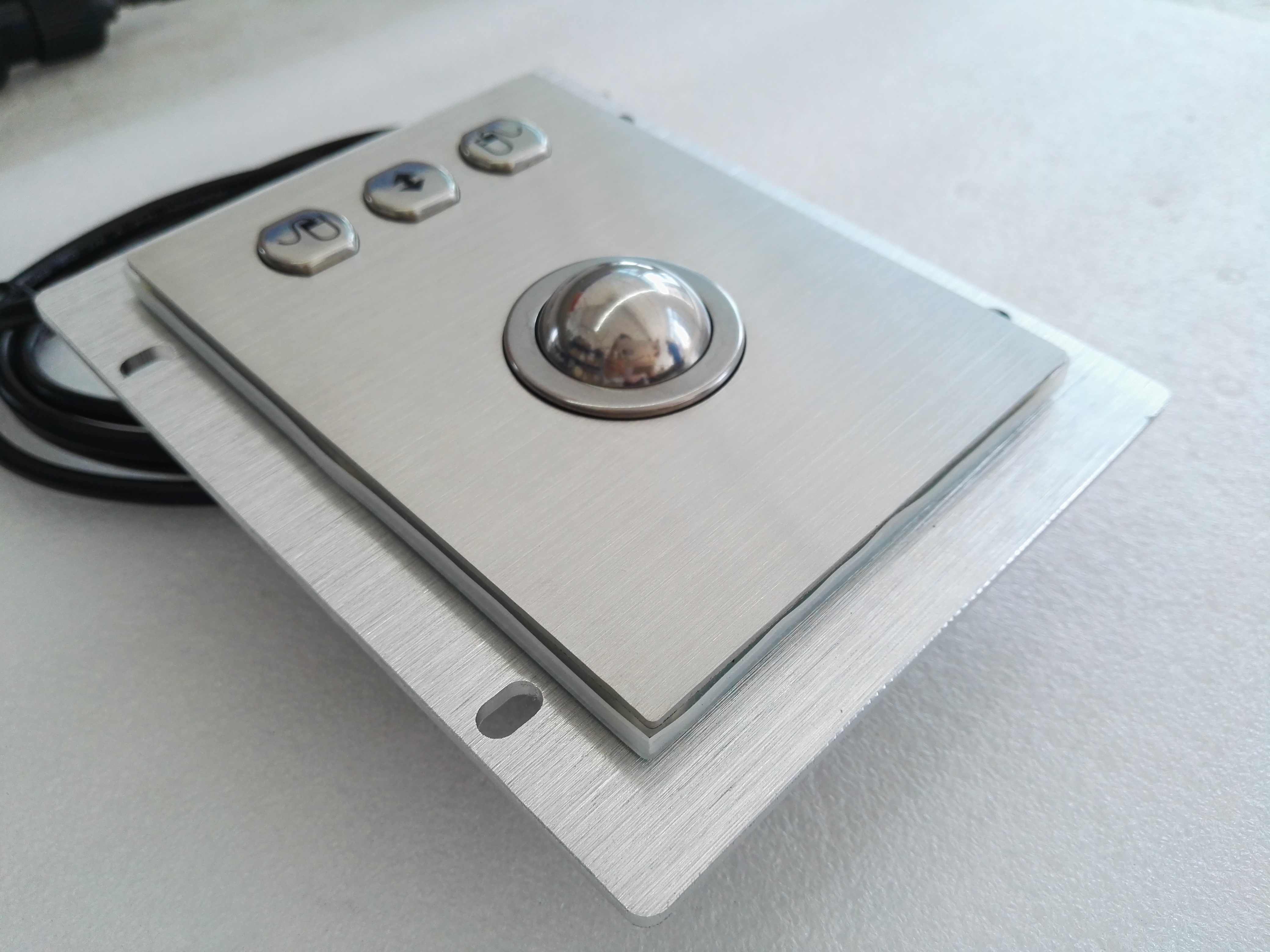

IP65 Rated Computer Industrial Trackball Mouse , Stainless Steel Trackball Pointing Device
KH-M25-80
Dimension: 80 x110mm(Front Panel)
PRODUCT DESCRIPTIONS-
Stainless Steel Panel mount Trackball Pointing Device, IP65 rated Industrial stainless steel trackball, 3 mouse buttons designed for right, left scrolling keys, rear aluminum panel w/hole mounting solution.
PRODUCT FEATURES -
> Metal panel and keys design with laser trackball and 3 buttons designed for right, left and scrolling keys
> All metal machinery provide for rugged, smooth, long lasting and no noisy operation.
> Be strictly according to IP65 regulation for Water-proof, dust-proof, vandal-resistant proformance
> USB and PS/2 connectors are optional
> Rugged construction to ensure high vandal resistance
> Stainless steel ball for smooth, quick and durable operation and precise cursor positioning.
APPLICATION -
IP65 Rated Industrial Computer Mouse is mainly Using the existing mouse driver and mouse software Interfaces for most workstations and computers. It’s meet NEMA 4, 4X and IP 65specifications, making them vandalproof, resistant to dust, dirt, water and corrosive liquids.
TECHNICAL DATA -
> Mechnical Data
| Key Travel | 2.0mm |
| Switch Life | >1 million of per key |
| Trackball lifespan | >1 million revolutions |
> Electrical Data
| Supply Voltage | 5.0V DC±5% |
| Work Current | 10mA |
| EMC Standard | EN55022(B) |
> Environmental Adaptability
| Operating temperature | -20°C to +60°C |
| Storage temperature | -40°C to +80°C |
| Operating RH | 20-95% |
| Atmospheric pressure | 60-106Kpa. |
> Reliability
| CompliantStandard | RoHS , CE and FCC |
| Protection Level | IP65(front panel) |
| Vandal resistant | IK10 |
| Key Lifespan | >1 million actuation |
| MTBF | >50000H |
| MTTR | <30min
|
