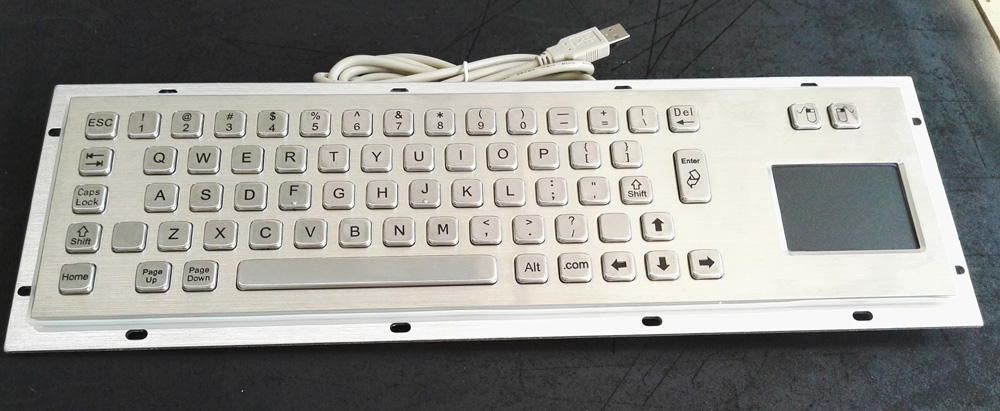

IP65 Water-proof Industrial Touchpad Keyboard with Metal Panel Mount
PRODUCT FEATURES -
> 65 PC-keyboard layout with touchpad, and additonal 2 mouse buttons
> IP65 regulation for water-proof,dust-proof,vandal-proof performance
> Built in High precision pressure sensing technology of touchpad
> Electro Carbon-on-Gold PCB key switch technology
> Laser engraved characters for excellent durable
> Rear aluminum panel w/hole mounting solution
> Interface PS/2, USB available,No driver needed, plug and play.
> Friendly layout and any language is available and it’s free of additional charge
APPLICATION -
The Rugged Stainless Steel Touchpad Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATM/CDM), Internet public phones etc.
TECHNICAL DATA -
> Mechnical Data
| Dimension: | (W x H): 392 x110 mm (Front panel) |
| Key & Front panel | SUS304 Brushed stainless steel material |
| Touchpad thickness | 1.3 mm PCB thickness inclusive of mylar layer |
| Switch Life | >1 million of per key |
| Touchpad lifespan | > 10 Mio times |
| Mounting Rack | Top stainless steel plate with mounting screw bolts |
| Back Metal Cover | Rear side integrated electronics protected by a metal cover |
| Operation System | WINDOWS98/ME/2000/2003/XP/Vista/Linux,Unix,MacOSX,iOS, Android |
> Electrical Data
| Supply Voltage |
5.0V DC±5% |
| Current Rating |
Appr. 30mA |
| EMC Standard |
Council EMC directive 2004/108/EC |
| EN55022 |
2006+A2:2010 |
| EN55024 |
1998+A1:2001+A2:2003 |
| Lifespan |
> 5 years |
> Environmental Adaptability
| Operating temperature: | -10°C to +55°C |
| Storage temperature: | - 20°C to + 65°C |
| Operating RH: | 10%-95% |
| Atmospheric pressure: | 60-106Kpa |
> Reliability
| CompliantStandard: | -10°C to +55°C |
| Protection Level: | - 20°C to + 65°C |
| Vandal resistant: | 10%-95% |
| MTBF: | >50000H
|
| MTTR | <30min |
| Packing | 1pc/EPE/inner box, 10boxes/ctn |
