Rugged Vandal Proof Touchpad Keyboard Industrial With USB Port And 70 Keys

SZ Kehang Technology Development Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

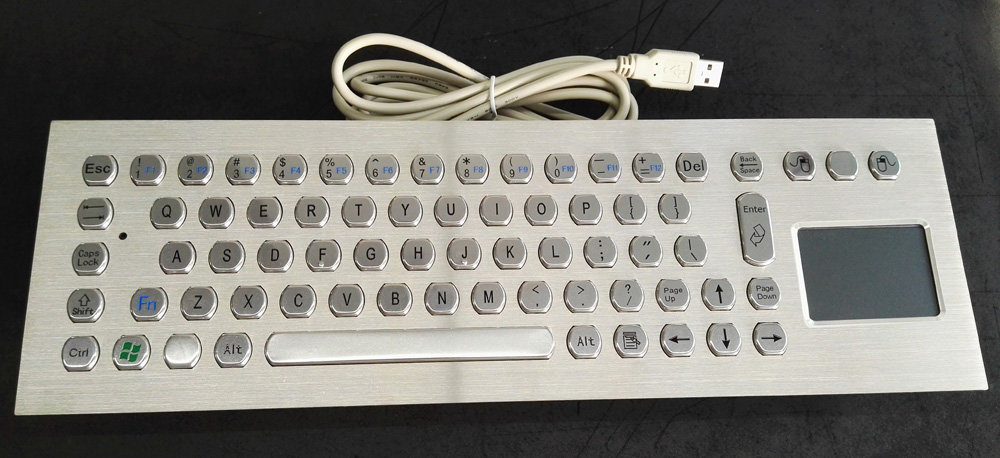

Rugged Vandal Proof Touchpad Keyboard Industrial With USB Port And 70 Keys

Brand Name : CNKHTECH

Model Number : KH-K68-382TP

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 2000pcs/month

Delivery Time : 1-2 weeks

Packaging Details : 1pcs/EPE/inner box, 10boxes/ctn

Material : Stainless Steel

L X W (MM) : 382 x122mm(Front Panel)

No. Of Keys : (67+ 3) keys

Mouse detail : Touchpad Mouse

Mounting Method : Rear Panel Mounting Solution

Protection Level : IP65; NEMA4x

Contact Now

Rugged Vandal Proof Touchpad Keyboard Industrial With USB Port And 70 Keys




PRODUCT FEATURES -


> 67 PC-keyboard layout with touchpad, and additonal 3 mouse buttons



> Be strictly according to IP65 regulation for water-proof,dust-proof,vandal-proof performance



> Built in High precision pressure sensing technology of touchpad



> Electro Carbon-on-Gold PCB key switch technology



> Laser engraved characters for excellent durable



>  Top panel w/hole mounting solution


>  Interface PS/2, USB available,No driver needed, plug and play.

>  Friendly layout and any language is available and it’s free of additional charge


APPLICATION -

The
Rugged Stainless Steel Touchpad Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATM/CDM), Internet public phones etc.


TECHNICAL DATA -

> Mechnical Data







Dimension:

(W x H): 382 x122 mm (Front panel)



Key & Front panel

SUS304 Brushed stainless steel material



Touchpad thickness

1.3 mm PCB thickness inclusive of mylar layer



Switch Life

>1 million of per key



Touchpad lifespan

> 10 Mio times



Mounting Rack

Top stainless steel plate with mounting screw bolts



Back Metal Cover

Rear side integrated electronics protected by a metal cover



Operation System

WINDOWS98/ME/2000/2003/XP/Vista/Linux,Unix,MacOSX,iOS, Android



> Electrical Data



Supply Voltage


    5.0V DC±5%



Current Rating


    Appr. 30mA



EMC Standard


    Council EMC directive 2004/108/EC



EN55022


    2006+A2:2010



EN55024


    1998+A1:2001+A2:2003



Lifespan


    > 5 years



> Environmental Adaptability



Operating temperature


    -20°C to +60°C



Storage temperature


    -30°C to +70°C



Operating RH


    20-95%



Atmospheric pressure


    60-106Kpa.


> Reliability



CompliantStandard


    RoHS , CE and FCC



Protection Level


    IP65(front panel)



Vandal resistant


    IK10



Key Lifespan


    >1 million actuation



MTBF


    >50000H


MTTR


    <30min




 Rugged Vandal Proof Touchpad Keyboard Industrial With USB Port And 70 Keys
